• We are leading an industry shift towards modern digital hardware and latest software techniques
  • We provide infrastructure for marine vehicles and instruments, scalable from small probes to work-class ROVs
  • Our solutions enable faster time-to-market for new products
  • Our software provides unprecedented flexibility and expandability
  • Software features extend beyond individual vehicles to include fleet management, remote updates and support, and teleoperations

Software Features

Basic Control

  • Depth hold, altitude hold, magnetic heading hold
  • Attitude stabilization
  • Wide variety of supported controller inputs; gamepads, joysticks, keyboards, custom hand controllers, and more

Control Modes

  • Gyro heading hold, position hold, waypoint navigation (coming soon!)
  • Re-tuning not required when hardware sensors change
  • Arbitrary attitude hold

Data Recording

  • All vehicle data is recorded to a single data file, easing post-processing
  • All data is time-synchronized

and Post-processing

  • Playback onsite to make sure mission is complete
  • Mark events during your dive
  • Use scripts (we have example ones) to post-process the data to extract just what you/your client needs

Video Pipeline

  • Low latency digital video pipeline
  • Multiple cameras
  • Control the bitrate and other functions of the camera
  • USB/IP based cameras

Topologies Supported

  • Support for dynamic and static IP
  • Support for concurrent multi-vehicle and multi-client operation
  • Support for control over remote links
  • Out-of-the-box zero-configuration support

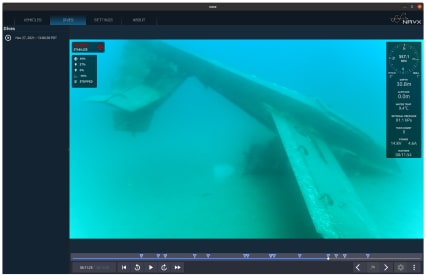

Intuitive Pilot UI

  • Display video streams, switch between video streams, telemetry
  • Sonar display (coming soon!)
  • Map and navigation information (coming soon!)

Expansion Ability

  • Control lights, manipulators, tilt platforms, tooling, etc.
  • Add custom sensors and view telemetry (CP, UT, etc.)

User Development

  • Our use of open standards, such as DDS, allows you to interface your programs to our system


Feature Mission Robotics Benefits
Lorem Ipsum Lorem Ipsum Lorem Ipsum Lorem Ipsum Lorem Ipsum Lorem Ipsum Lorem Ipsum Lorem Ipsum Lorem Ipsum Lorem Ipsum
Control System
Auto Heading
Auto Pitch
Auto Roll
Auto Altitude
Dynamic Positioning
Dynamic Waypoint Following
Point of Interest Orbiting
Sonar Relative Positioning
Chart Plotter
Mission Planning
Vehicle Diagnostics


  • Built on top of open standards to allow user expansion and industry interoperability
  • Provides you a proven solution today as well as the features you need for the future
  • Accelerates your time to market for vehicle designs, sensor integrations, and custom projects

Vehicle OS & Pilot
Control Software

Marine-specific vehicle and control software built for pilot-in-the-loop and autonomous vehicles.

  • Supports Vehicle OS & Pilot Control Software
  • Superior camera performance: 60fps 1080p video, extreme light sensitivity, glass-to-glass latency <130ms
  • Operational efficiency: remote power switch, single unified PCB opens up space in enclosure, ESC telemetry feedback, subsystem power switching for load shedding and subsystem resets

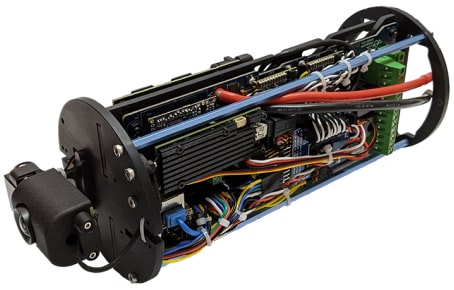

for 4” Enclosure

All-in-one solution to retrofit BlueROV2 or other vehicles based on T200 thrusters.

  • Supports Vehicle OS & Pilot Control Software
  • PCBs can be customized to match vehicle requirements
  • Allows for retrofit of existing vehicles to modernize capabilities

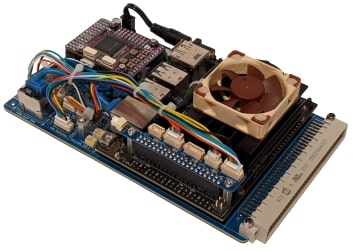

Re-Packaged Solution for Custom Vehicles

Core functions repackaged for larger vehicles. To date has been deployed on vehicles up to 600kg.


  • CAN protocol used to reduce communication to a single twisted-pair
  • Fully embedded and standalone versions available
  • Supports PWM, GPIO, I2C, Serial, SPI, A/D

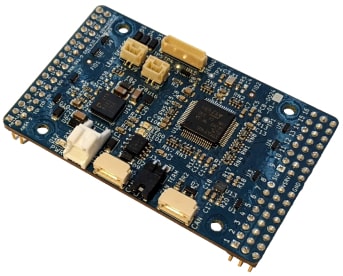

I/O Expander Board

Enables multi-bottle systems or systems where more actuators or sensors are needed.

  • Provides reliable operation in systems with difficult noise or grounding situations
  • Isolation protects rest of system from cable breaks and shorts
  • Small form factor allows for easy integration

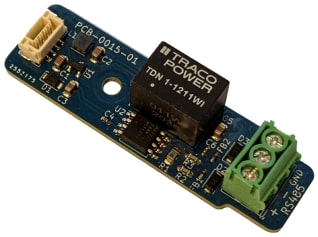

Isolated Serial Boards

Isolated RS232, RS485, and LVTTL UART boards to connect peripherals to the system.

  • Dual 25W and single 50W boards available
  • Voltages supported: 5V, 12V, 24V (others available on request)
  • Control signal allows peripherals to be turned on and off
  • Provide your accessory with steady power when you have a variable-voltage main power bus

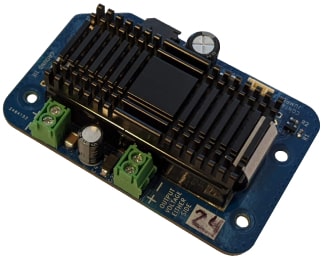

Isolated Power Supply Boards

Isolate and regulate power for your peripherals to increase performance and robustness.

  • 100Mbit/s and 1Gbit/s options available
  • Seamless mechanical and electrical integration with Slide-In-Electronics

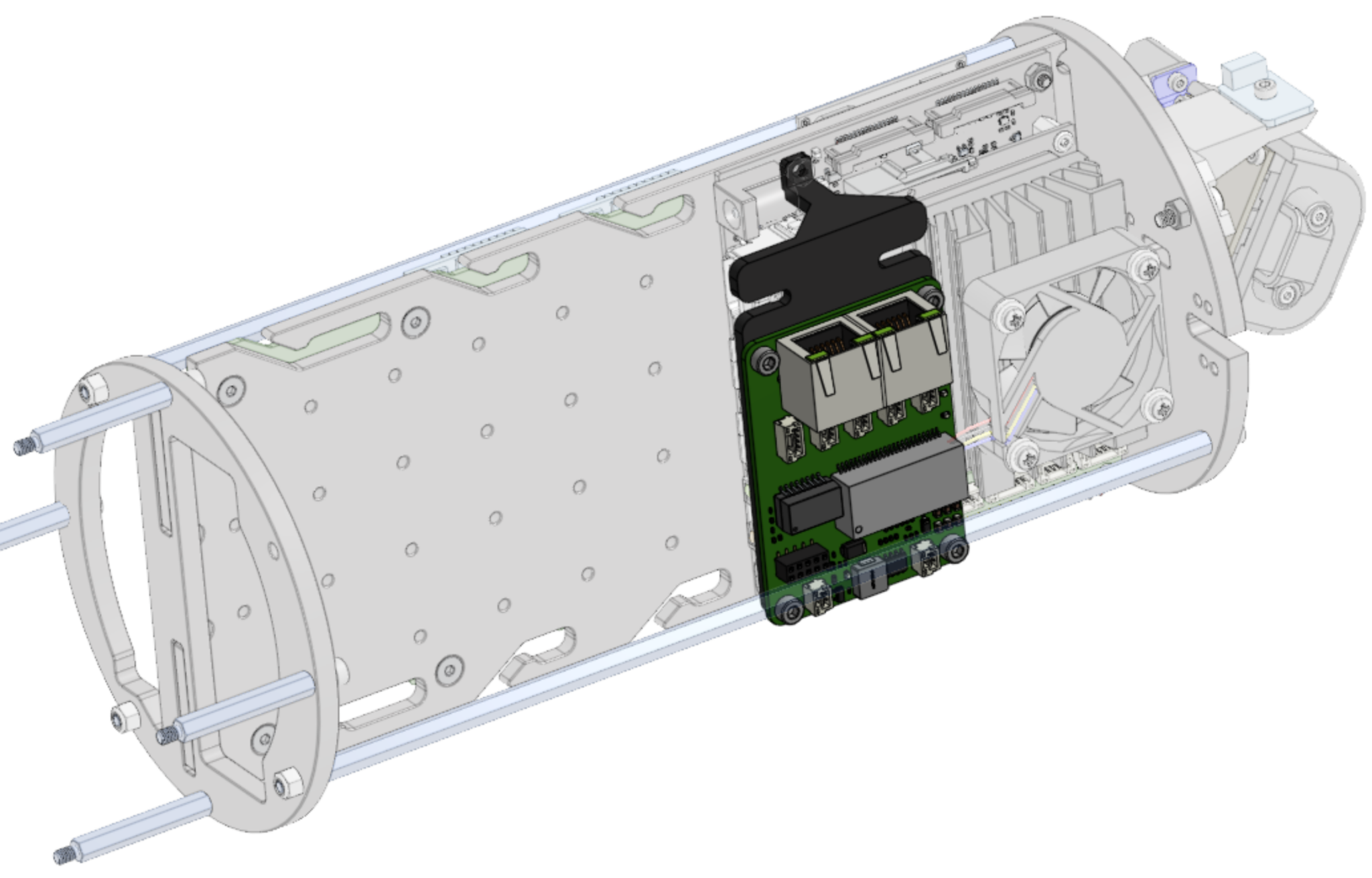

Ethernet Switches

Connect ethernet peripherals to the system.

  • Anodized Aluminum Housing
  • Removable connector and marine cable
  • Controllable bitrate up to 48Mbit/s
  • Depth rating 600m
  • Sapphire window for scratch resistance

External Camera

Low-latency, 60fps, high bitrate 1080p video with extreme low-light sensitivity.

  • Isolated power provides increased system robustness

  • Connect to the board via wire pads and terminal blocks, or via JST-GH connectors conforming to Blue Robotics standard

  • Small form factor allows for easy integration, including 2” tubes

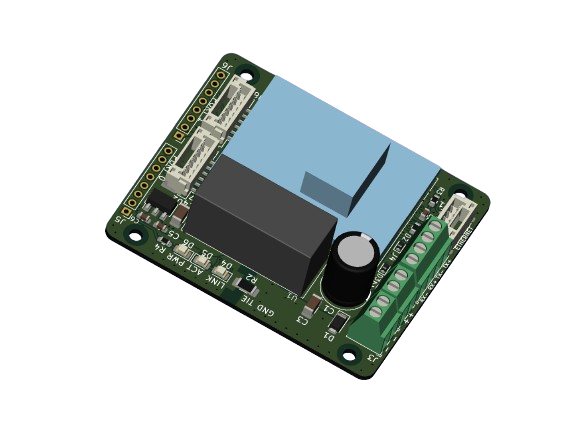

Dual Serial to Ethernet

Connect serial devices to an ethernet based vehicle system.
